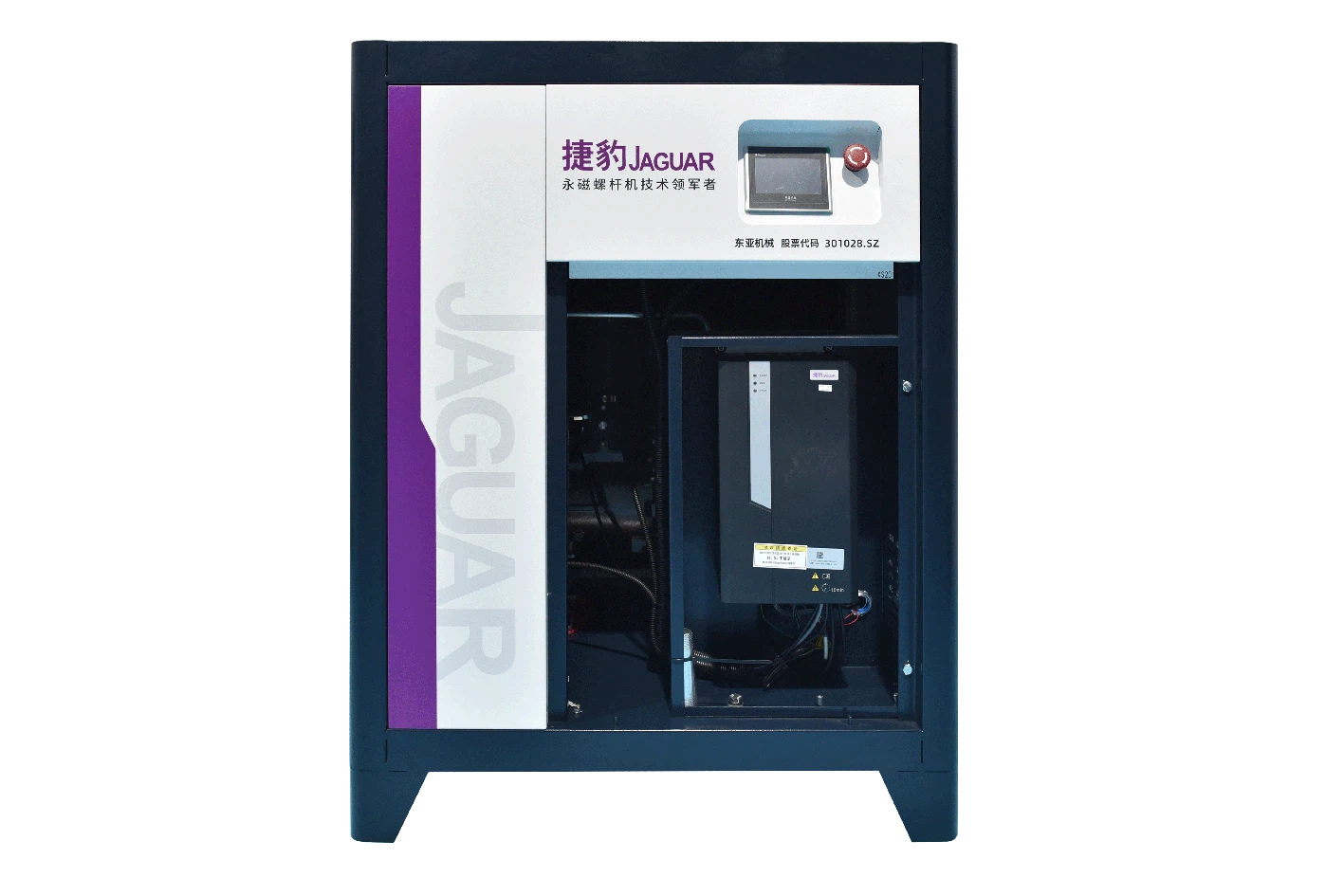

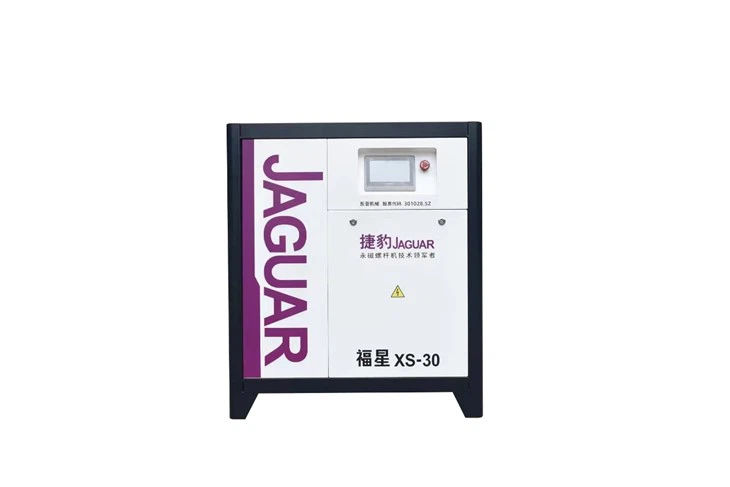

Jaguar Screw Air Compressor 22kw 30hp 8bar 220v 380v 50hz 60hz Asia Africa America Machines Industrial De Aire Stable Product

Name: Jaguar Screw Air Compressor 22kw 30hp 8bar 220v 380v 50hz 60hz Asia Africa America Machines Industrial De Aire Stable Product
Brand: JAGUAR
SKU: 195153215

PermanentMagnetVSDScrewAirCompressor All new design High Efficient High Quality Coaxial drive makes higher efficiency and zero transmission loss. IE4 permanent magnet motor running speed changes by site requirement. IP65 protection level is assured by liquid cooling enclosure motor housing. All series using IE4 high efficiency motor XS series all use IE4 permanent magnet high efficiency VSD motor which is made of rare earth material NdFeB. Permanent magnet creates excitation magnetic field and thus achieves high efficient electric energy conversion. It is called as permanent magnet synchronous motor as it rotates as same as excitation synchronous motor but is with higher efficient, smaller dimension, lower weight and more compact structure.

Send Inquiry

Product Introduction

Whatsapp：Jack Su +86 17665229987 / Ada Zhan +86 18559311107
Wechat：Jack Su +86 17665229987 / Ada Zhan +86 18559311107
E-mail: jack@jaguar-compressor.com
ada@jaguar-compressor.com

All series using IE4 high effiffifficiency motor

XS series all use IE4 permanent magnet high effiffifficiency VSD motor which is made

of rare earth material NdFeB. Permanent magnet creates excitation magnetic fifield

and thus achieves high effiffifficient electric energy conversion. It is called as

permanent magnet synchronous motor as it rotates as same as excitation

synchronous motor but is with higher effiffifficient, smaller dimension, lower weight

and more compact structure.
