PM VSD Screw Air Compressor Hi+

JAGUAR PM Variable Speed Screw Compressors Hi+ Series

JAGUAR PM VSD screw compressors Hi+ series are developed for high-end factories with fluctuating air demand and long-term continuous operation. Fitted with high-efficiency permanent magnet motor and variable speed drive, it adjusts output according to real-time air consumption to maintain steady pressure, avoiding continuous full-load operation and delivering excellent energy-saving performance.

This series is widely used in CNC workshops, automotive parts plants, packaging lines, textile machinery, woodworking, ceramics, photovoltaic industry and general manufacturing. It is compatible with air tools, cylinders, valves, cleaning guns, spraying equipment, packaging machines and automated production equipment.

Before selecting a model, confirm the working pressure, required air delivery, voltage, running hours and installation space, and check if air dryers, air tanks or line filters are needed. Choose the compressor based on actual air demand rather than just the motor power stated in the catalog.

First 12 3 4 5 Last 1/5

What is Permanent Magnet VSD Screw Air Compressor

The VSD is an electronic module, which is used to change the speed of the motor by varying the frequency applied to the motor. The motor speed is directly proportional to the frequency, and thus changes in frequency impact the motor speed and the amount of power consumed. Hidden behind these letters is (inverter) technology that automatically adjusts the compressor's motor speed to the compressed air demand in real time. If you want to know the specifications and prices of Permanent Magnet VSD Screw Air Compressor, please contact us!

Start/stop Even Under Full System Pressure

The starting currents of the motors in variable speed drive compressor are lower, this eliminates the large spikes in demand. The inrush current that could lead to the windings overheating is prevented thanks to the variable speed drive. During the operation of production, the variable speed can soft start/stop even under full system pressure. This will save time and energy to your production.

Longer Lifetime of Machine

The motor speed and the compressor performance are optimised by the variable speed drive. This results in a longer lifetime of components and minimise downtime. When the variable speed air compressor is running at a lower RPM, the compressor is quieter than a fixed speed.

Minimised System Leakages

Variable speed compressors provide more consistent pressure as they don't operate on pressure bands. Some of the variable speed screw compressors will maintain a discharge pressure within +/- 100 mbarg of the set pressure. System leakages are minimised thanks to a lower system pressure.

Complete Variable Speed Solutions

A variable speed screw compressor can save you considerable amounts of energy thanks to only running when required. We have a range of energy efficient variable speed screw compressors to ensure you can receive these benefits. We offer the complete solutions to your business, from highly efficient products to exceptional service. We are your partners in compressed air.

Certifications

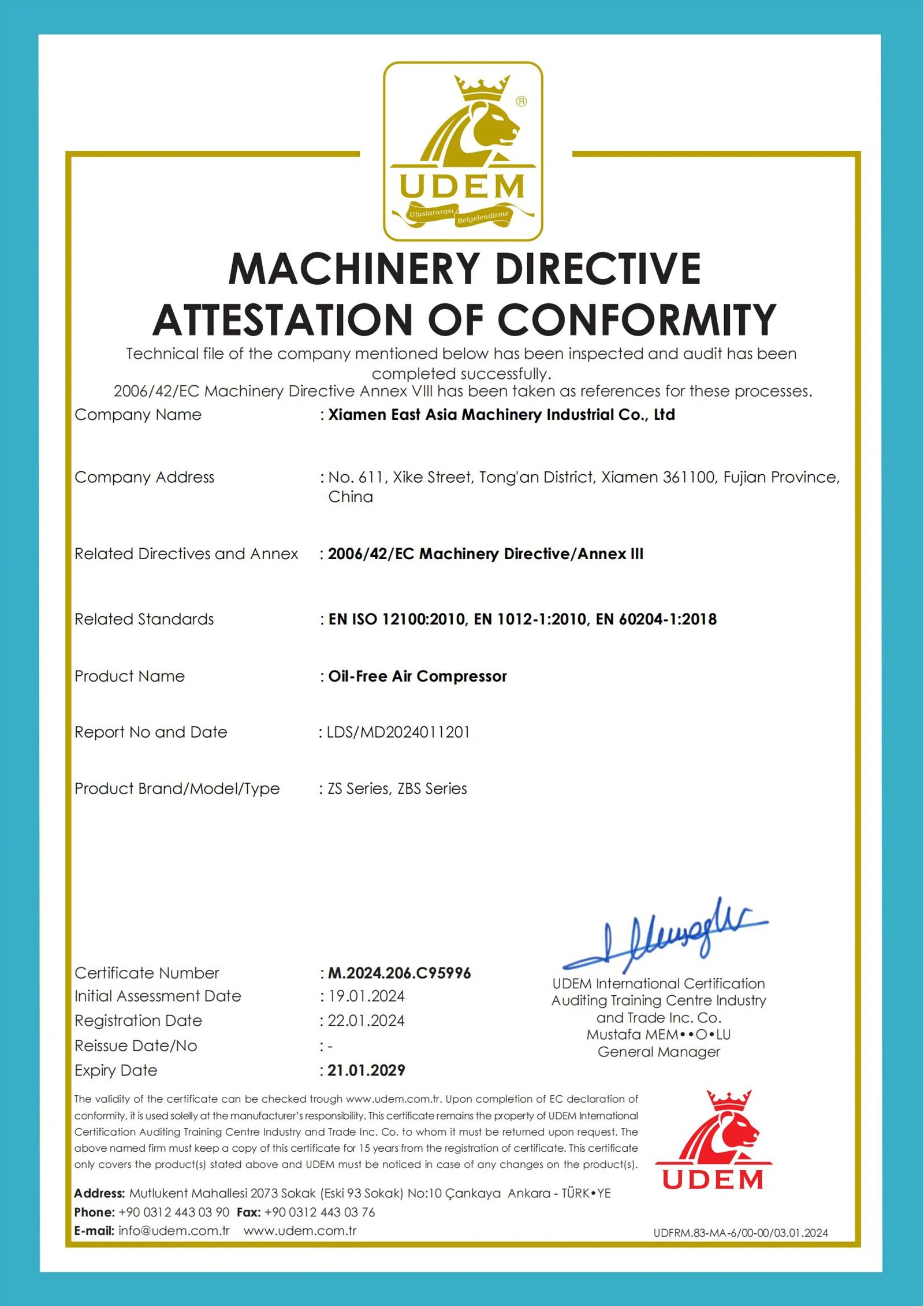

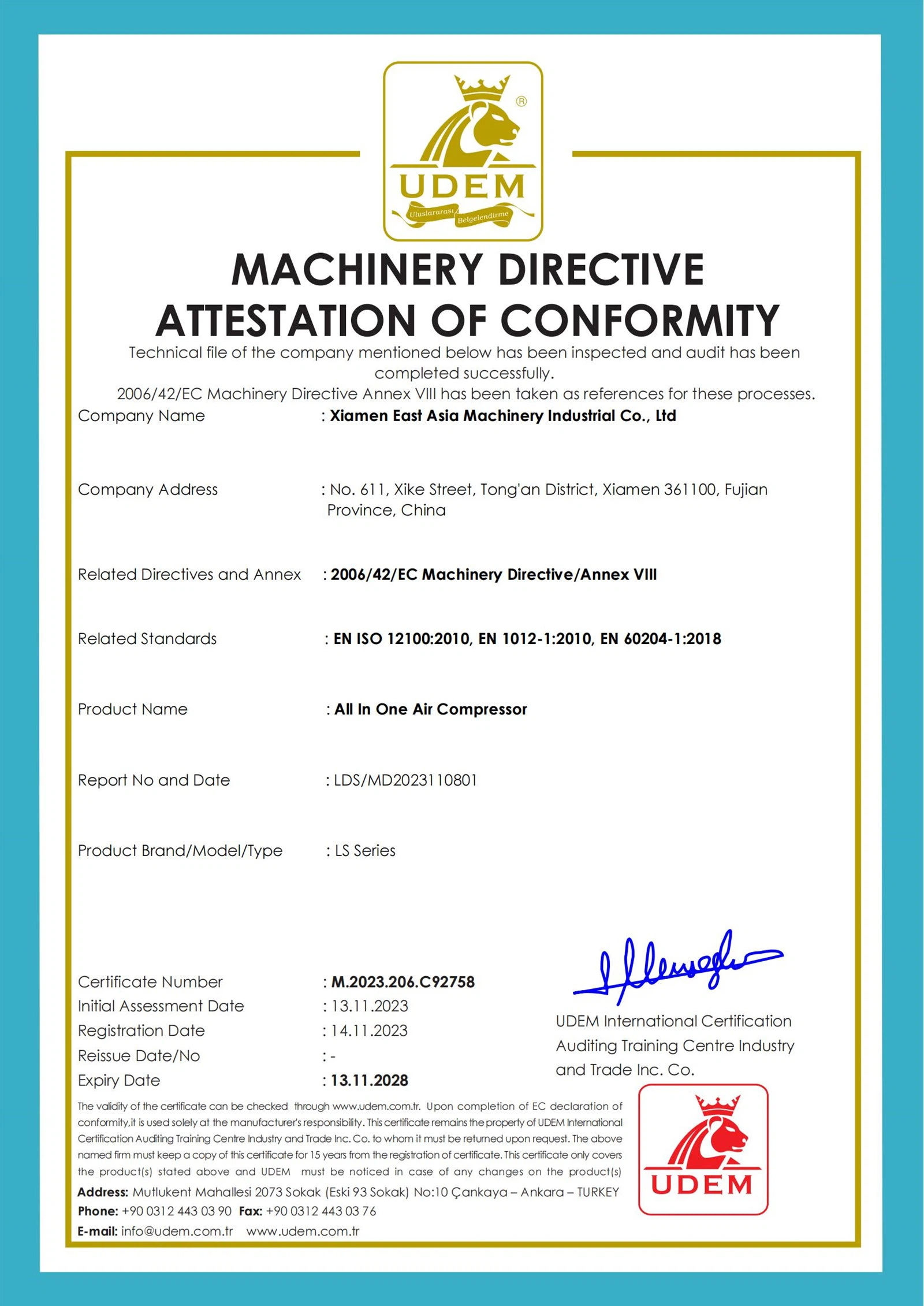

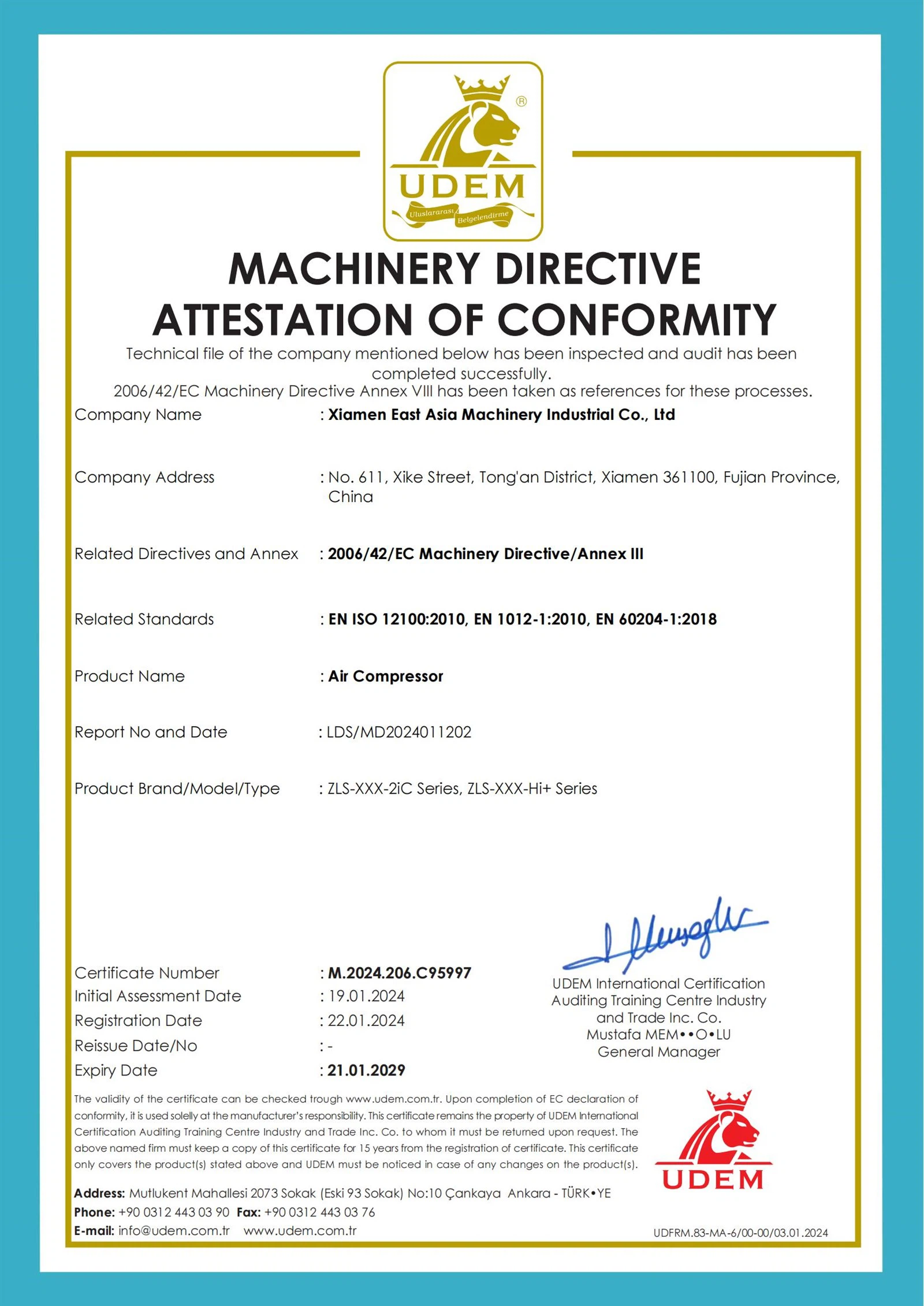

Jaguar air compressor has won CE certification, ASME certification, ISO 9001 quality management system, ISO 14001 environmental management system, ISO 45001 occupational health and safety management system and GB/T 29409 Intellectual Property Management Certification.

productcate-601-834 productcate-535-729 productcate-531-735

productcate-1653-2336

Frequently Asked Questions

Q: What is the difference between VSD and fixed speed compressors?

A: A VSD compressor is a smart choice when demand for air varies by process, time of day, shift or time of the year. When demand fluctuates, a VSD compressor that varies its speed is much more energy efficient than a fixed-speed compressor that can only run flat out.

What type of air compressor is a VSD?

VSD stands for variable speed drive. Hidden behind these letters is (inverter) technology that automatically adjusts the compressor's motor speed to the compressed air demand in real time. This often saves a lot of energy and money.

Q: Why use VSD?

A: A VSD controls the speed and torque of an AC motor by converting fixed frequency and voltage input to a variable frequency and voltage output. System performance can be greatly improved by controlling speed to precisely match the load.

Q: Is a VSD an inverter?

A: A Variable Speed Drive (VSD), also known as a Variable Frequency Drive (VFD) or an Inverter is an electronic motor control device which allows complete control of the motor speed including starting and stopping.

Q: What is a permanent magnet air compressor?

A: Energy Efficiency: Permanent magnet frequency conversion air compressors are more energy-efficient than traditional power frequency screw air compressors. They use a permanent magnet motor that is more efficient than the induction motors used in power frequency screw air compressors.

Q: What is the most efficient air compressor?

A: Extremely efficient, especially at high volumes, centrifugal compressors can produce a lot of air from a small footprint and are very durable.

Q: How long do rotary screw air compressors last?

A: Reciprocating air compressors typically last around 50,000 hours or 6 years, running 24/7. Rotary screw air compressors usually last over 100,000 hours. Centrifugal air compressors should last over 250,000 hours.

Q: Which is better screw or piston compressor?

A: There are more moving parts in a piston compressor than in a screw, which results in increased machine wear and tear. Screw compressors don't have as much wear; hence, they have reduced maintenance needs. But keep in mind that it's important to keep any type of compressor on a consistent maintenance schedule!

Q: Why use a screw compressor?

A: Screw air compressors are an energy efficient option as they generate less heat compared to normal air compressors. Less heat means less water created during air compression and reduces the water that could get into your compressor, tools and final application.

Q: Are rotary screw air compressors better?

A: Key benefits to using a rotary screw compressor include: Fewer moving parts to wear. It provides a large volume of cooled air. 100% duty cycle, or air-on-demand.

Q: What is the failure of screw air compressor?

A: There are three common faults of screw compressors: motor overload, high temperature, gas-guzzling.

Q: How do I choose a screw compressor?

A: That makes them a great choice for applications with a steady air demand (and the more steady that demand, the more efficient they are). Variable speed drive (VSD) compressors, on the other hand, adjust their motor speed to the amount of air that is needed.

Q: Why is it called screw compressor?

A: The rotary screw compressor is a displacement compressor type where rotating screws are used to compress the air. Compared with a piston compressor, the screw compressor compresses air continuously without pulsation. It has high efficiency at full load and low efficiency when partially loaded.

Q: How is a screw compressor different from a normal compressor?

A: Screw compressors use two meshing helical screws, while piston air compressors use pistons driven by a crankshaft. Another difference is the moving parts as the screw compressor has two moving parts which are not in contact while the piston compressor has a lot of moving parts.

Q: Do screw compressors have bearings?

A: Screw compressors are used in environments where they are exposed to such chemicals as compressor oil, refrigerants, and ammonia gas. Consequently, bearings for screw compressors must be highly resistant to oil and heat.

Q: How does a screw compressor control capacity?

A: The main methods of screw compressor capacity control are shaft speed variation, suction throttling and variation of the suction volume.

We're well-known as one of the leading permanent magnet vsd screw air compressor manufacturers and suppliers in China for 30 years. Welcome to buy high quality permanent magnet vsd screw air compressor at competitive price from our factory. For more information, contact us now. PM Variable Frequency Screw Air Compressor, Permanent Magnet Industrial Aircompressors, Variable Speed Rotary Screw Compressor
