7.5kw 10HP Direct Drive Integrated 300L Air Tank Air Dryer Pm VSD Screw Air Compressor
Max air displacement: 2.6m3/min
Power: 22kw/30hp
Pressure: 15bar
Size: 1900*850*1950mm
Weight: 730kg
Lead Time: 10-20 working days
Our company advocates the business philosophy of 'honesty, pragmatism, and quality', and is committed to professional design, production, and sales of all kinds of Low Pressure High CFM Screw Air Compressor, Large Discharge Screw Air Compressor, Permanent Magnet Inverter Air Compressor, providing customers with efficient service and high-quality products. Customer satisfaction is our service guidelines. We take customer satisfaction as the goal, and we will continue to innovate on the original basis and constantly pursue perfection to meet the different needs of customers. Since establishment, we have been recognized by many users with high-quality service and pragmatic spirit. To be able to know our solutions and enterprise. We can supply custom service too such as Logo, custom size, or custom merchandise etc that can according to customer's requirement.

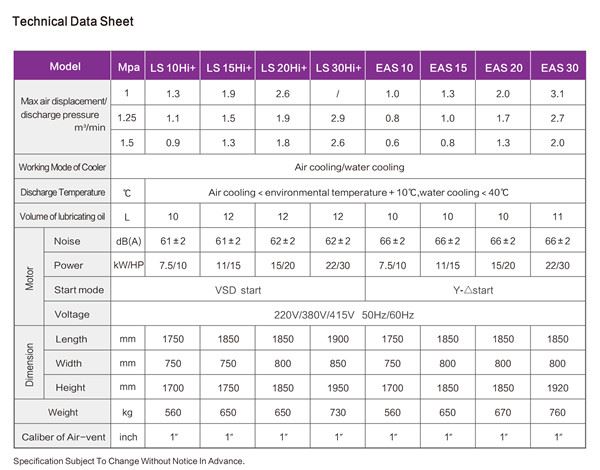

Product Parameters
| LS-30HI screw compressors built-in dryer | ||||
| 1 | Displacement | m³/min | 1.5MPa | 2.2 |
| 2 | Rated Power | kW/HP | 22/30 | |
| 3 | Ambient temperature | ℃ | ≤40 | |
| 4 | Cooling method | - | Air cooling | |
| 5 | Exhaust temperature | ℃ | ≤45 | |
| 6 | Air Outlet of the Oil content | PPm | ≤0.003 | |
| 7 | Dustiness | μm | ≤0.01 | |
| 8 | Noise Level | dB(A) | 64±2 | |
| 9 | Pressure Dew Point | ℃ | 2-10 | |
| 10 | Dimensions (L*W*H) | mm | 1630*850*1920 | |
| 11 | Weight | kg | 730 | |

Product Details
1. Permanent magnet Variable Frequency Drive air compressor energy-saving up to 50%
2. Integrated compressed air station, compact structure, and high reliable and longer service life.
3. Purity discharge air, equipped with a high precision filter, assure the purity of compressed air.
4. Integrated with air dryer and tank, small footprint, the pressure is 1.0-1.5 MPa, suitable for laser cutting industry and automobile maintenance service.
5. Equipped with VSD intelligent control technology, one essential control the compressor and dryer, more convenience.
Additional Products

Certifications
Jaguar air compressor won the ISO 9001:2015 Quality Management System certificate.

Our Company
Jaguar air compressor is specialized in air compressor equipment research, manufacture, sales, and service with 30year's experience. We are committed to providing our customer with the most energy-efficient air compressor. The main product is the screw air compressor, piston air compressor, air dryer, etc. Our products not only bestselling in China, but also export to Southeast Asia, South Asia, Middle East, Australia, Europe, and more than 40 Countries and region, and recognized by customers.


Packing and shipping
1. Our cargo packed by fumigated wooden cases, all of which have been fumigated.
2. We will choose the fastest shipping company and deliver the goods to you as soon as possible.
3. What you need to do is to take the bill of lading and other documents to pick up the goods when they arrive at the port.
FAQ
Q1. Are you trading company or manufacture?
A: We are a professional manufacturer of screw air compressor for more than 30 years.
Q2. How long is the delivery time?
A: It needs 25-30 working days. If a particular voltage, it requires 45 working days.
Q3. What's the payment term?
A: We accept T/T, L/C.
Q4. How about your after-sales service?
A: Factory-train technician can solve any air compressor problems.
Q5. How about your warranty?
A: We provide one year warranty for the whole machine.
We will constantly satisfy our respected customers with our good excellent, superior value and superior assistance due to we're additional experienced and far more hard-working and do it in cost-effective way for 7.5kw 10HP Direct Drive Integrated 300L Air Tank Air Dryer Pm VSD Screw Air Compressor. In our trade with merchants of several countries, we often adhere to the principle of equality and mutual advantage. Last but not least, price of our products are very suitable and have fairly high competition with other companies.
