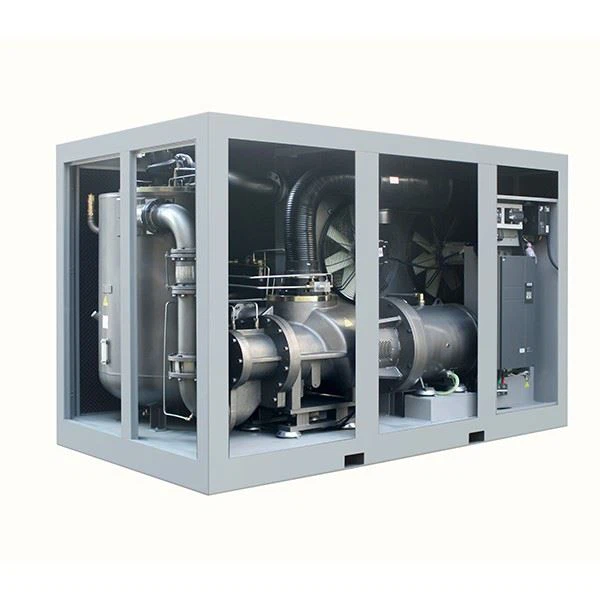

Low Pressure High Discharge Compressor
Max air displacement: 28.9m3/min
Power: 90kw/125hp
Pressure: 3bar
Size: 3050*2150*2050mm
Weight: 3190kg
Lead Time: 10-20 working days
Product Parameters
ZLS 125DI 0.3MPa PM VSD AIR COMPRESSOR | ||||
1 | Displacement | m³/min | 0.3MPa | 28.9 |
2 | Rated Power | kW/HP | 90/125 | |
3 | Ambient temperature | ℃ | ≤40 | |
4 | Cooling method | - | Air/water cooling | |
5 | Exhaust temperature | ℃ | ≤Ambient temperature+10 | |
6 | Air Outlet of the Oil content | PPm | ≤3 | |
7 | Dustiness | μm | ≤3 | |
8 | Noise Level | dB(A) | 68±2 | |
9 | Dimensions (L*W*H) | air cooling -mm | 3250*2000*2050 | |
10 | Weight | kg | 3190 | |
Product Details
1. When you only need the pressure of 0.3-0.5MPa, if you use the ordinary 0.7MPa machine and decompression to 0.3MPa to use, it means you would waste a lot of electricity.
2. But with a permanent magnet low pressure and large displacement screw compressor, in the same condition, it will be more reliable and more energy-saving than the ordinary air compressor.
3. Jaguar low-pressure screw air compressor was a special design for the textile industry, and it can provide massive compressed air discharge.
4. The low-pressure air compressor chosen permanent magnet motor; it can save 10% energy consumption.
5. The air compressor used special intake valve, oil and gas separation filter, provide more extended service for air compressor.
Additional Products
Certifications
Jaguar air compressor won the ISO 14001:2015 Environmental Management System certificate.
Our Company
Xiamen East Asia Machinery Industrial Co., Ltd. is specialised in air compressor equipment research, manufacture, sales, and service with 30year's experience. We can produce 100sets screw air compressor one day. Jaguar permanent magnet screw air compressor can energy-saving up to 50%, was the most energy-efficient air compressor product. Jaguar's product was exported to more than 40 countries and got an excellent reputation.
After-service
Our factory-trained technicians will provide 24 hours of service support, and our worldwide distributor also can give excellent after-service.
FAQ
Q1. What about the voltage of products?
A: Our voltage is 380V/50HZ, 220V/60HZ and 415V/50HZ; also the voltage can be customised.
Q2. Which payment term can you accept?
A: We can accept T/T 40% before production, T/T 60% within three days once finish the cargo.
Q3. How long will you take to arrange production?
A: The 380V/50HZ we need 20-25 days to production, the particular voltage needs 45days to manufacture.
Q4. Can you accept OEM orders?
A: Sorry, we do not accept OEM now.
Q5. Which trade term can you accept?
A: Our company accept T/T and L/C.
